A lightweight and flexible rope with a construction similar to steel wire. The outside of the strand is composed of continuous
multifilament yarn between each outer monofilament.
This construction ensures that the rope has perfect shape retention. The outer multifilament filler yarns fur up and form a pile providing excellent resistance to surface abrasion. Available in 2 qualities: 100% nylon or polyester/copolymer.
| Relative density | 1,14 | |
| Temperature resistance | Can be used below 0°C Melting point 218°C (Nylon 6) | |
| UV resistance | Excellent - fully stabilised | |

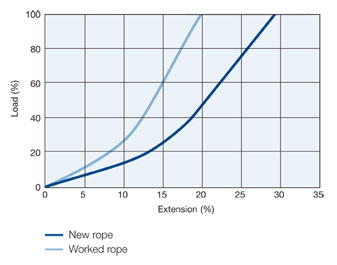

| Extension | Breaking stretch of 29% (new rope) reduces to 20% (worked rope) | |
| Flexibility | Good - excellent shape retention | |
| Chemical resistance | Good resistance to alkalis - limited to acids |
| Relative density | 1,25 | |
| Temperature resistance | Flexible down to –40°C Melting point 220°C | |
| UV resistance | Excellent - fully stabilised | |

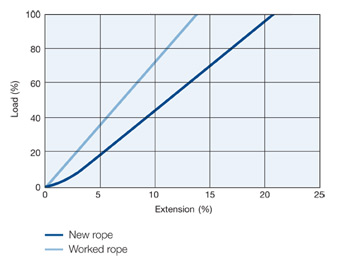

| Extension | Breaking stretch of 21% (new rope) reduces to 14% (worked rope) | |
| Flexibility | Remains flexible - no water absorption | |
| Chemical resistance | Good - except to alkalis |
Length measured under reference tension according to EN ISO 9554
| Diam. Ø | Circ./ | Mass | Min. breaking load | |
|---|---|---|---|---|
| mm | inch " | kg/100m | T | kN |
| 36 | 4 ½ | 83,2 | 26 | 255 |
| 40 | 5 | 100 | 31 | 304 |
| 44 | 5 ½ | 125 | 42 | 412 |
| 48 | 6 | 148 | 50,1 | 491 |
| 52 | 6 ½ | 160 | 54 | 530 |
| 56 | 7 | 200 | 66,5 | 652 |
| 60 | 7 ½ | 217 | 70 | 686 |
| 62 | 7 ¾ | 235 | 79 | 775 |
| 64 | 8 | 245 | 81 | 794 |
| 68 | 8 ½ | 280 | 94 | 922 |
| 70 | 8 ¾ | 310 | 103 | 1010 |
| 72 | 9 | 335 | 108 | 1059 |
| 78 | 9 ¾ | 364 | 120 | 1177 |
| 84 | 10 ½ | 425 | 140 | 1373 |
| 90 | 11 ¼ | 505 | 165 | 1618 |
| 96 | 12 | 585 | 190 | 1863 |
| Diam. Ø | Circ./ | Mass | Min. breaking load | |
|---|---|---|---|---|
| mm | inch " | kg/100m | T | kN |
| 40 | 5 | 110 | 31 | 304 |
| 44 | 5 ½ | 137 | 42 | 412 |
| 48 | 6 | 163 | 50 | 490 |
| 52 | 6 ½ | 177 | 54 | 530 |
| 56 | 7 | 220 | 73,2 | 718 |
| 60 | 7 ½ | 238 | 77 | 755 |
| 62 | 7 ¾ | 259 | 86,9 | 852 |
| 64 | 8 | 270 | 89,1 | 874 |
| 68 | 8 ½ | 308 | 103 | 1014 |
| 70 | 8 ¾ | 341 | 113 | 1111 |
| 72 | 9 | 361 | 120 | 1176 |
| 78 | 9 ¾ | 400 | 132 | 1294 |
